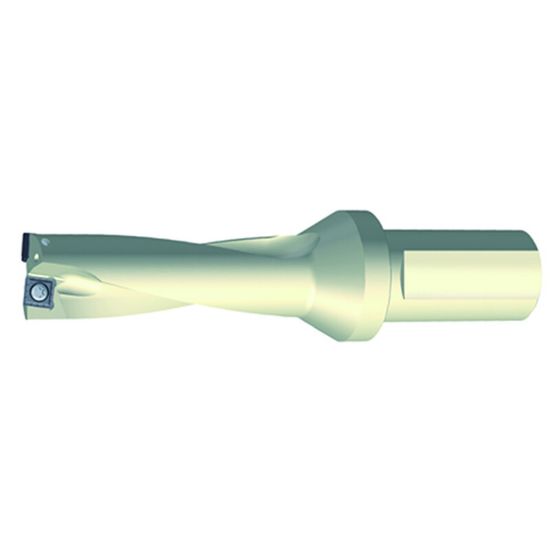

ZCC ZTD05-1.531"-XP1.50"-SP11-02 1.531" DIA Square Insert Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4340000504
Delivery date: 3-5 days
$383.14

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Multi Insert Drilling, Drilling
Shipping State Michigan
Package Size 1
Dimensional Specifications
Dia Deep 5.0XD
Tool Material High Speed Steel
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Flute Length 7.8500 199.39MM
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 1.5312 38.90MM - 1-17/32
Cut Dia Min 1.5312 38.90MM - 1-17/32
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Overall Len 11.7900 299.47MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSS
Industry-Specific Applications
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
Medical Yes
Automotive Yes
Job Shop Yes
