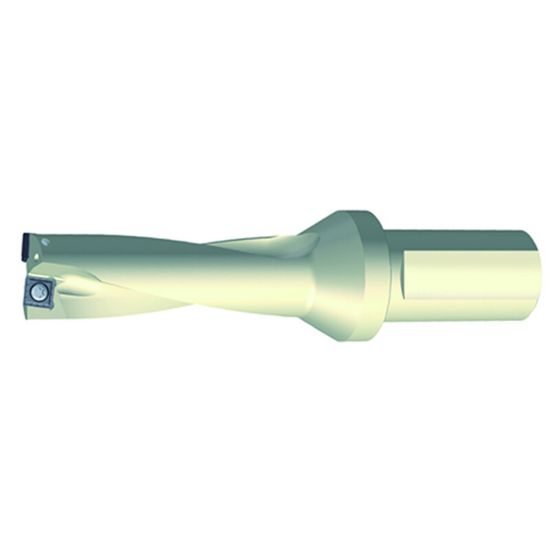

ZCC ZTD05-1.500"-XP1.50"-SP11-02 1.500" DIA Square Insert Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4340000484
Delivery date: 3-5 days
$383.14

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Shipping State Michigan
Package Size 1
Made In USA No
Dimensional Specifications
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Flute Length 7.7000 195.58MM
Overall Len 11.6300 295.40MM
Tool Material High Speed Steel
Flutes/Inserts 2
Dia Deep 5.0XD
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
