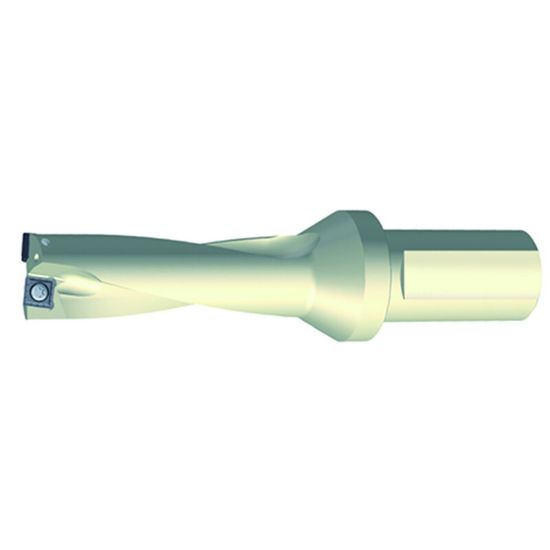

ZCC ZTD03-1.719"-XP1.50"-SP14-02 1.719" DIA Square Insert Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4340000526
Delivery date: 3-5 days
$397.11

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Michigan
Package Size 1
Dimensional Specifications
Tool Material High Speed Steel
Cut Dia Min 1.7188 43.66MM - 1-23/32
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Cutter Dia 1.7188 43.66MM - 1-23/32
Dia Deep 3.0XD
Flute Length 5.3500 135.89MM
Overall Len 9.6800 245.87MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSS
Industry-Specific Applications
Automotive Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
