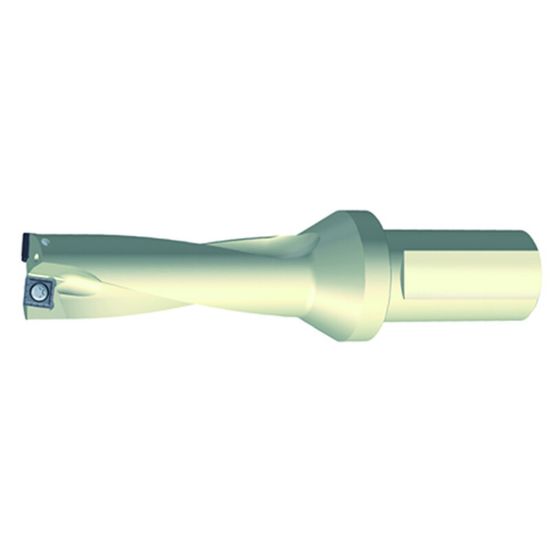

ZCC ZTD03-1.687"-XP1.50"-SP14-02 1.687" DIA Square Insert Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4340000525
Delivery date: 3-5 days
$371.17

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Michigan
Package Size 1
Dimensional Specifications
Flute Length 5.2600 133.60MM
Cutter Dia 1.6875 42.86MM - 1-11/16
Cut Dia Min 1.6875 42.86MM - 1-11/16
Overall Len 9.5900 243.59MM
Dia Deep 3.0XD
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Tool Material High Speed Steel
Flutes/Inserts 2
Machine Side Connection Size 1.5000 38.10MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Medical Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
