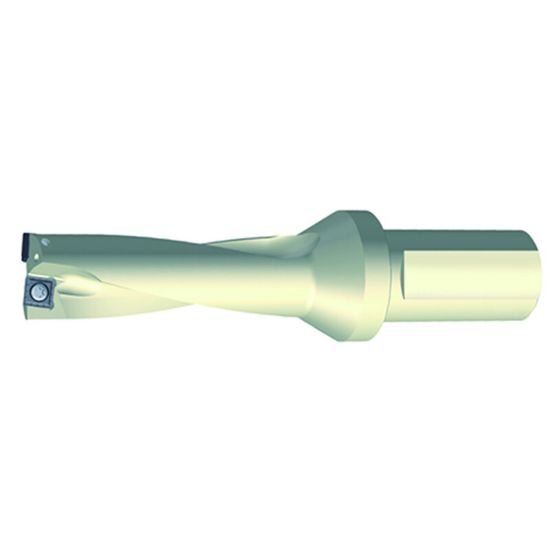

ZCC ZTD03-0.719"-XP1.00"-SP06-02 0.719" DIA Square Insert Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4340000440
Delivery date: 3-5 days
$215.11

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Michigan
Package Size 1
Dimensional Specifications
Cutter Dia 0.7188 18.26MM - 23/32
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 0.7188 18.26MM - 23/32
Tool Material High Speed Steel
Flutes/Inserts 2
Flute Length 2.3500 59.69MM
Dia Deep 3.0XD
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 5.4200 137.67MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
