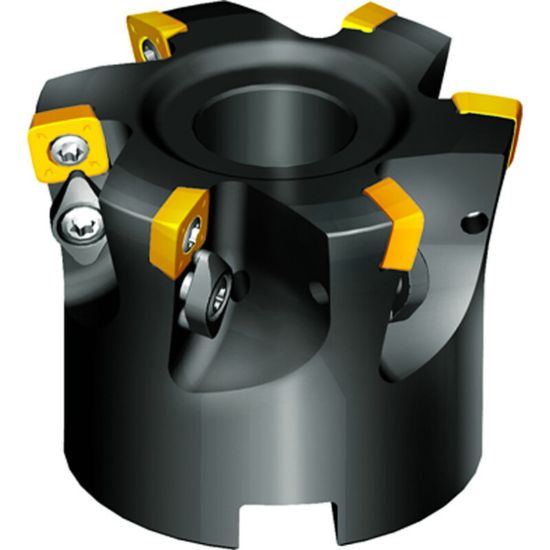

Picture of ZCC XMR01-4.00''-B1.50''-SD12-08 Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

ZCC XMR01-4.00''-B1.50''-SD12-08 Milling Cutter 4.000 Cutter Diameter Face Mill 1.500

ANSI: XMR01-4.00''-B1.50''-SD12-08

ISO: XMR01-4.00''-B1.50''-SD12-08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350002859
Delivery date: 3-5 days
$357.68
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Application Ramp Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling
Made In USA No
Insert Type Positive
Shipping State Michigan
Package Size 1
Dimensional Specifications
Tool Material Steel
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.5000 63.50MM
Flutes/Inserts 8
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.0710
Cutter Dia 4.0000 101.60MM
Cutting & Machining Properties
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
