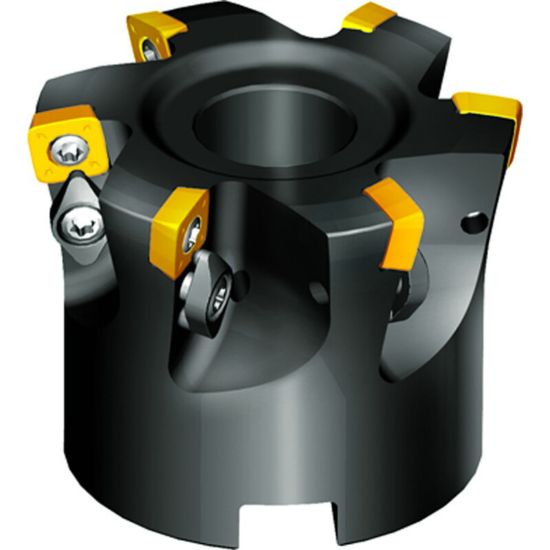

Picture of ZCC XMR01-2.00''-A0.75''-SD09-05 Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

ZCC XMR01-2.00''-A0.75''-SD09-05 Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

ANSI: XMR01-2.00''-A0.75''-SD09-05

ISO: XMR01-2.00''-A0.75''-SD09-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350001343
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Feed Milling, Ramp Milling, Face Milling, Slot Milling, Copy Milling
Insert Application General Purpose
Made In USA No
Package Size 1
Insert/Tool Tool
Insert Type Positive
Shipping State Michigan
Dimensional Specifications
Depth Of Cut Max 0.0550
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.7500 44.45MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Insert Size Ic 9
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SD
