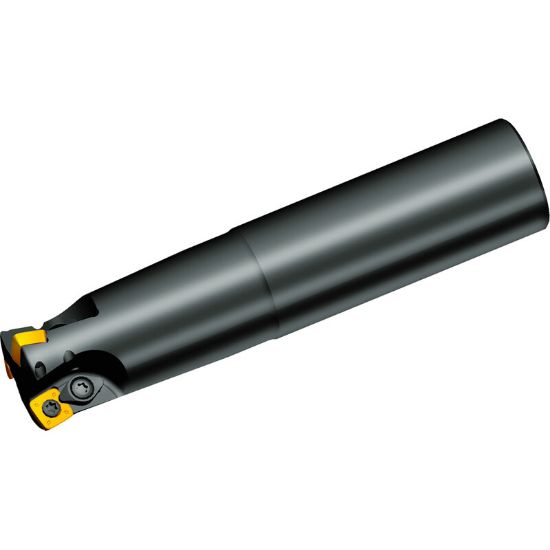

Picture of ZCC XMR01-1.50''-G1.50''-SD12-03 Milling Cutter 1.500 Cutter Diameter End Mill 1.500

ZCC XMR01-1.50''-G1.50''-SD12-03 Milling Cutter 1.500 Cutter Diameter End Mill 1.500

ANSI: XMR01-1.50''-G1.50''-SD12-03

ISO: XMR01-1.50''-G1.50''-SD12-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350001260
Delivery date: 3-5 days
$121.70
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Copy Milling, Feed Milling, Ramp Milling, Slot Milling, Face Milling
Insert Type Positive
Made In USA No
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Neck Length 8.0000 203.20MM
Overall Len 3.5000 88.90MM
Tool Material Steel
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 12
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.0710
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
