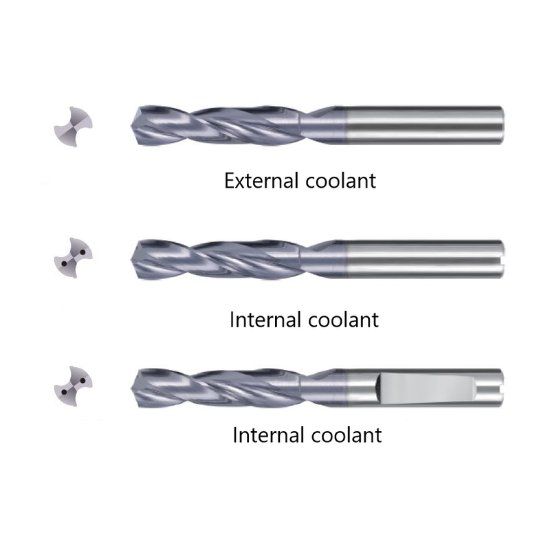

Picture of ZCC SU-A1-08125 KDG303 0.8125 Dia Carbide Coolant Drill

ZCC SU-A1-08125 KDG303 0.8125 Dia Carbide Coolant Drill

Part Number: ZCC4410006075
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1155425
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ZCC SU-A1-08125 KDG303 0.8125 DIA CARBIDE COOLANT DRILL Coolant Thru 140° TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.0200 152.91MM
Shank/Pilot Dia 0.8125 20.64MM - 13/16
Flutes/Inserts 2
Tool Dia 0.8125 20.64MM - 13/16
Flute Length 3.0710 78.00MM
Dia Deep 8.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.8125 20.64MM - 13/16
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
