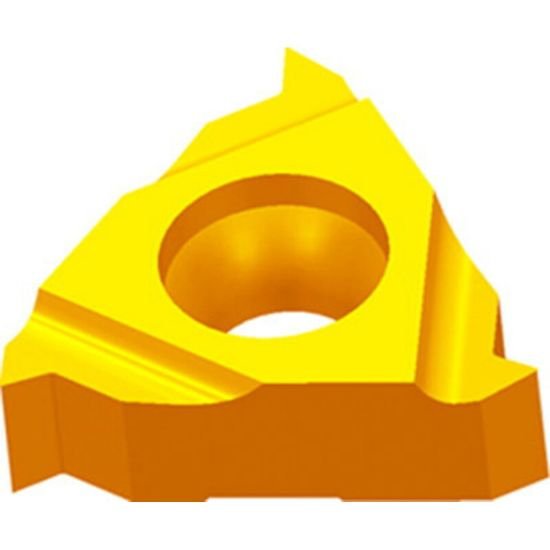

Picture of ZCC RT22.01N-N55P YBG201 Insert Sandvik Partial Profile TiN 5.00TPI - 7.00TPI 5.08mm - 3.63mm 55.0°

ZCC RT22.01N-N55P YBG201 Insert Sandvik Partial Profile TiN 5.00TPI - 7.00TPI 5.08mm - 3.63mm 55.0°

Part Number: ZCC4230001075 ISO: RT22.01N-N55P YBG201 ANSI:RT22.01N-N55P YBG201
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1031006
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

ZCC 4230001075 Triangle Insert Positive TiN PVD Tin coated carbide grade with good toughness and wear resistance. Good for threading and drilling (both peripheral and central inserts) on low carbon of steels, stainless steel, heat resistance steel, and cast iron.
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style SA
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Right Hand
Thread Type 55.0°
Inter/Extern Internal
Full Or Partial Profile Partial Profile
Dimensions & Sizing
Insert Size Ic 22
Thread Pitch 5.00TPI - 7.00TPI 5.08MM - 3.63MM
Threed Teeth 1
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating TIN
Grade YBG201
Compatibility & Fit
Insert Fits Sandvik
