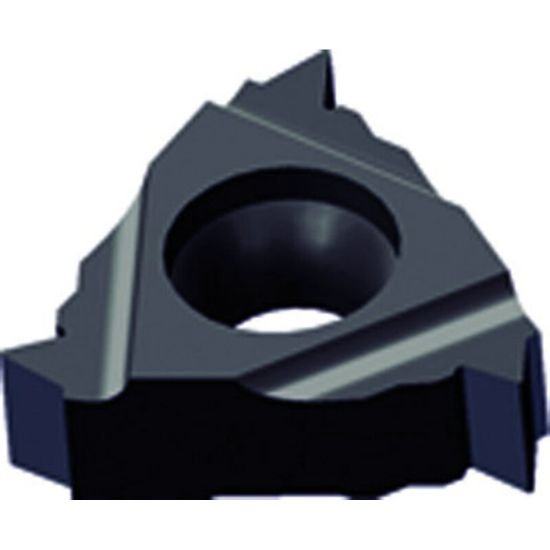

Picture of ZCC RT16.01W-14WB YBG202 Insert Sandvik Full Profile TiAlN 14.00TPI Whitworth BSW/BSF/BSP

ZCC RT16.01W-14WB YBG202 Insert Sandvik Full Profile TiAlN 14.00TPI Whitworth BSW/BSF/BSP

Part Number: ZCC4230001344 ISO: RT16.01W-14WB YBG202 ANSI:RT16.01W-14WB YBG202

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: 1031034
Vendor: Sussex Tool and Supply
$9.37
This product has a minimum quantity of 10
ZCC 4230001344 Triangle Insert Positive TiAlN The combination of nc-TiAlN coating and fine grain substrate makes it suitable for turning of various materials and finishing and semi-finishing of high-temperature alloys.
Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating TiAlN
Insert/Tool INSERT
Cut Type General Purpose
Insert Style SA
Insert Shape/Cutter Pocket Shape Triangle
Grade YBG202
Insert Type Positive
Insert Size Ic 16
Insert Fits Sandvik
Hand Right Hand
Thread Pitch 14.00TPI
Thread Type Whitworth BSW/BSF/BSP
Inter/Extern External
Full Or Partial Profile Full Profile
Threed Teeth 1
