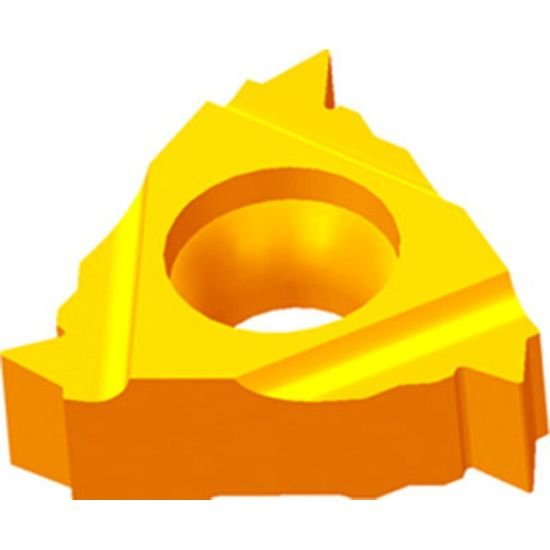

Picture of ZCC RT16.01W-14W YBG205 Insert Sandvik Full Profile TiAlN 14.00TPI Whitworth BSW/BSF/BSP

ZCC RT16.01W-14W YBG205 Insert Sandvik Full Profile TiAlN 14.00TPI Whitworth BSW/BSF/BSP

Part Number: ZCC4230003251 ISO: RT16.01W-14W YBG205 ANSI:RT16.01W-14W YBG205
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1031258
Vendor: Sussex Tool and Supply
$13.25
This product has a minimum quantity of 10

Description

ZCC 4230003251 Triangle Insert Positive TiAlN Superfine TiAlN nano coating added with wear-resistant and heat-resistant rare elements has high hardness and excellent heat-resistance, providing effective protection for the cutting edge. Special coating technology ensures stronger combination of coating and substrate. It is suitable for extra finishing of stainless steel.
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style SA
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Right Hand
Thread Type Whitworth BSW/BSF/BSP
Inter/Extern External
Full Or Partial Profile Full Profile
Dimensions & Sizing
Insert Size Ic 16
Thread Pitch 14.00TPI
Threed Teeth 1
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Grade YBG205
Compatibility & Fit
Insert Fits Sandvik
