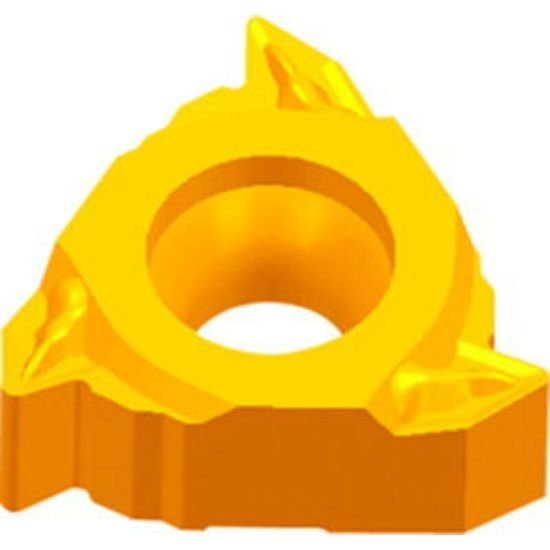

Picture of ZCC LT16.01W-0.50GM YBG201 Insert Sandvik Full Profile TiN 0.50mm Metric

ZCC LT16.01W-0.50GM YBG201 Insert Sandvik Full Profile TiN 0.50mm Metric

Part Number: ZCC4230002370 ISO: LT16.01W-0.50GM YBG201 ANSI:LT16.01W-0.50GM YBG201

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: 1031230
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
ZCC 4230002370 Triangle Insert Positive TiN PVD Tin coated carbide grade with good toughness and wear resistance. Good for threading and drilling (both peripheral and central inserts) on low carbon of steels, stainless steel, heat resistance steel, and cast iron.
Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating TIN
Insert/Tool INSERT
Cut Type General Purpose
Insert Style SA
Insert Shape/Cutter Pocket Shape Triangle
Grade YBG201
Insert Type Positive
Insert Size Ic 16
Insert Fits Sandvik
Hand Left Hand
Thread Pitch 0.50MM
Thread Type METRIC
Inter/Extern External
Full Or Partial Profile Full Profile
Threed Teeth 1
