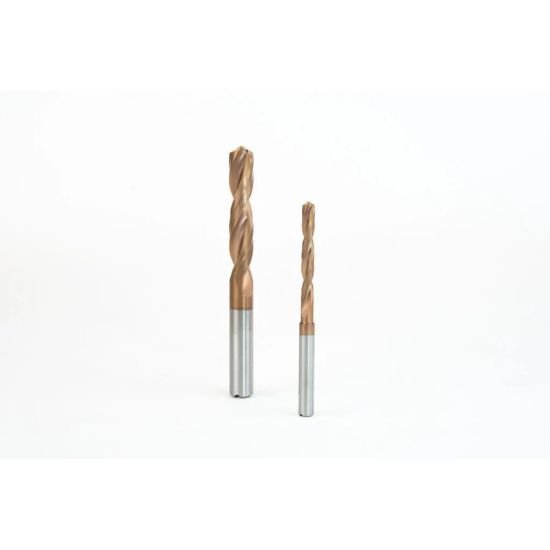

Picture of ZCC GD08C-1200 KDG3013 0.4724 Dia Carbide Coolant Drill

ZCC GD08C-1200 KDG3013 0.4724 Dia Carbide Coolant Drill

Part Number: ZCC4410009364
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1155391
Vendor: Sussex Tool and Supply
$438.08

Description

ZCC GD08C-1200 KDG3013 0.4724 DIA CARBIDE COOLANT DRILL Coolant Thru 140° TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.3780 162.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Flute Length 3.8980 99.01MM
Dia Deep 8.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.4724 12.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
