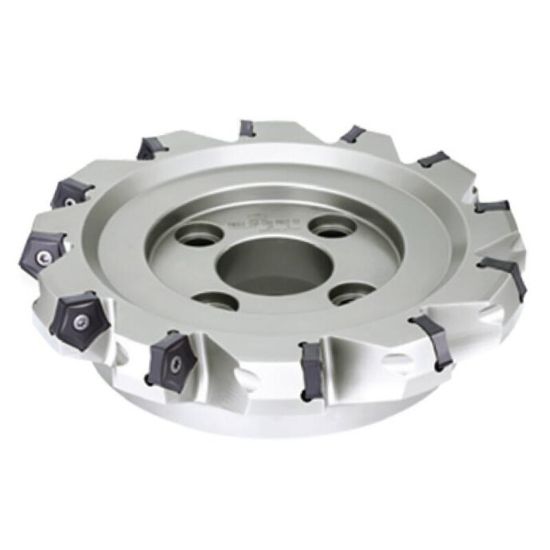

Picture of ZCC FMD04-12.00''-D2.50''-PN17-14 67.0° Milling Cutter 12.00 Cutter Diameter Face Mill 2.500

ZCC FMD04-12.00''-D2.50''-PN17-14 67.0° Milling Cutter 12.00 Cutter Diameter Face Mill 2.500

ANSI: FMD04-12.00''-D2.50''-PN17-14

ISO: FMD04-12.00''-D2.50''-PN17-14

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350002816
Delivery date: 3-5 days
$1,540.98
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Insert Application Semi Finishing, Roughing
Application Face Milling
Shipping State Michigan
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Cutter Dia 12.0000 304.80MM
Cut Dia Max 12.4960 317.40MM
Depth Of Cut Max 0.4720
Insert Size Ic 17
Overall Len 2.5000 63.50MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 14
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Pentagonal
Insert Style PN
