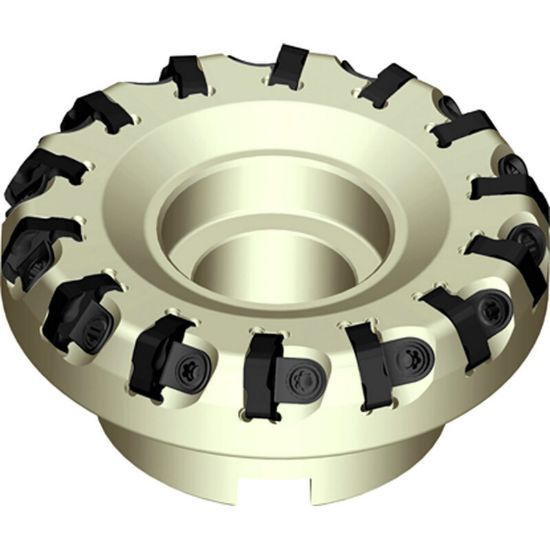

Picture of ZCC FMD02-5.00''-B1.50''-PN11-18 67.0° Milling Cutter 5.000 Cutter Diameter Face Mill 1.500

ZCC FMD02-5.00''-B1.50''-PN11-18 67.0° Milling Cutter 5.000 Cutter Diameter Face Mill 1.500

ANSI: FMD02-5.00''-B1.50''-PN11-18

ISO: FMD02-5.00''-B1.50''-PN11-18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350002104
Delivery date: 3-5 days
$652.51
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Application Face Milling
Shipping State Michigan
Dimensional Specifications
Flutes/Inserts 18
Insert Size Ic 11
Cut Dia Max 5.3980 137.11MM
Machine Side Connection Size 1.5000 38.10MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.1970
Tool Material Steel
Cutter Dia 5.0000 127.00MM
Overall Len 2.5000 63.50MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Pentagonal
Insert Style PN
