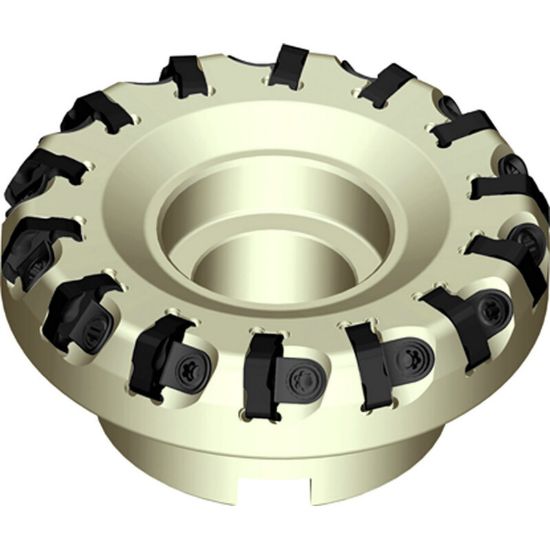

Picture of ZCC FMD02-4.00''-B1.25''-PN11-10 67.0° Milling Cutter 4.000 Cutter Diameter Face Mill 1.250

ZCC FMD02-4.00''-B1.25''-PN11-10 67.0° Milling Cutter 4.000 Cutter Diameter Face Mill 1.250

ANSI: FMD02-4.00''-B1.25''-PN11-10

ISO: FMD02-4.00''-B1.25''-PN11-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350001439
Delivery date: 3-5 days
$366.16
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Face Milling
Shipping State Michigan
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 10
Insert Size Ic 11
Cut Dia Max 4.3980 111.71MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cutter Dia 4.0000 101.60MM
Depth Of Cut Max 0.2760
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Pentagonal
Insert Style PN
