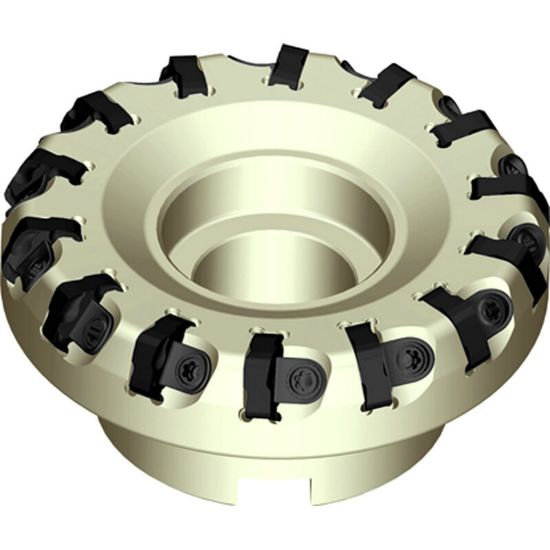

ZCC FMD02-3.00''-A1.00''-PN11-10 67.0° Milling Cutter 3.000 Cutter Diameter Face Mill 1.000

ANSI: FMD02-3.00''-A1.00''-PN11-10

ISO: FMD02-3.00''-A1.00''-PN11-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350003056
Delivery date: 3-5 days
$315.28
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling
Shipping State Michigan
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Overall Len 1.7500 44.45MM
Flutes/Inserts 10
Insert Size Ic 11
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 3.3980 86.31MM
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.1970
Tool Material Steel
Cutter Dia 3.0000 76.20MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Pentagonal
Insert Style PN
