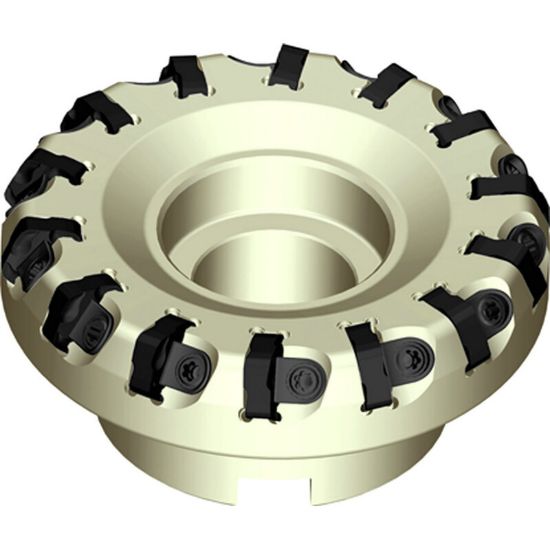

Picture of ZCC FMD02-3.00''-A1.00''-PN11-06 67.0° Milling Cutter 3.000 Cutter Diameter Face Mill 1.000

ZCC FMD02-3.00''-A1.00''-PN11-06 67.0° Milling Cutter 3.000 Cutter Diameter Face Mill 1.000

ANSI: FMD02-3.00''-A1.00''-PN11-06

ISO: FMD02-3.00''-A1.00''-PN11-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350002242
Delivery date: 3-5 days
$220.50
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Package Size 1
Application Face Milling
Shipping State Michigan
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Flutes/Inserts 6
Depth Of Cut Max 0.2760
Cut Dia Max 3.3980 86.31MM
Tool Material Steel
Cutter Dia 3.0000 76.20MM
Insert Size Ic 11
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Pentagonal
Insert Style PN
