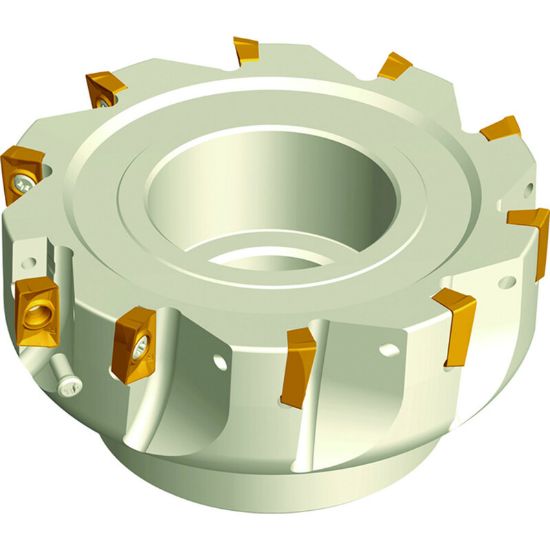

Picture of ZCC EMP02-8.00"-C2.50"-AP16-12 90.0° Milling Cutter 8.000 Cutter Diameter Face Mill 2.500

ZCC EMP02-8.00"-C2.50"-AP16-12 90.0° Milling Cutter 8.000 Cutter Diameter Face Mill 2.500

ANSI: EMP02-8.00"-C2.50"-AP16-12

ISO: EMP02-8.00"-C2.50"-AP16-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350003115
Delivery date: 3-5 days
$781.23
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Made In USA No
Insert Application Semi Finishing, Roughing
Insert Type Positive
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Insert Size Ic 16
Cutter Dia 8.0000 203.20MM
Depth Of Cut Max 0.6300
Overall Len 2.5000 63.50MM
Machine Side Connection Size 2.5000 63.50MM
Flutes/Inserts 12
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
