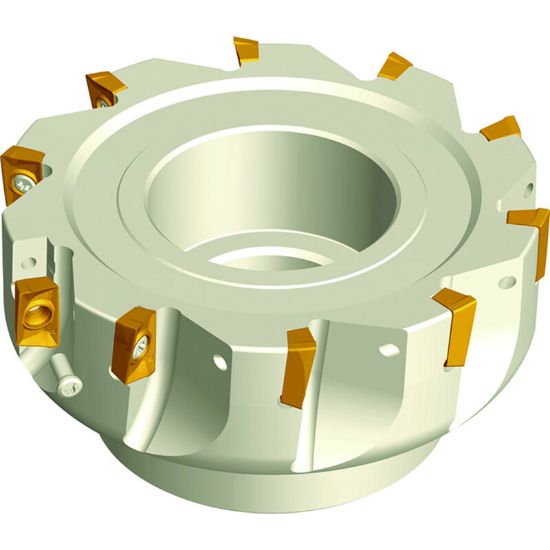

Picture of ZCC EMP02-6.00"-B1.50"-AP16-09 90.0° Milling Cutter 6.000 Cutter Diameter Face Mill 1.500

ZCC EMP02-6.00"-B1.50"-AP16-09 90.0° Milling Cutter 6.000 Cutter Diameter Face Mill 1.500

ANSI: EMP02-6.00"-B1.50"-AP16-09

ISO: EMP02-6.00"-B1.50"-AP16-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350001924
Delivery date: 3-5 days
$331.24
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Insert Application Semi Finishing, Roughing
Made In USA No
Insert/Tool Tool
Shipping State Michigan
Package Size 1
Dimensional Specifications
Overall Len 2.5000 63.50MM
Insert Size Ic 16
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 9
Tool Material Steel
Depth Of Cut Max 0.6300
Cutter Dia 6.0000 152.40MM
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
