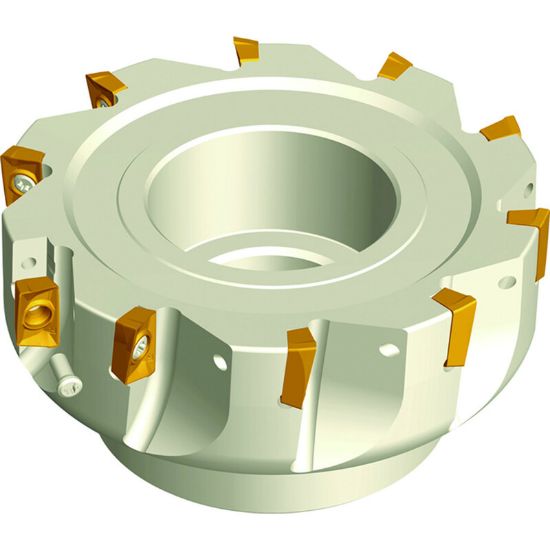

Picture of ZCC EMP02-4.00″-B1.25″-AP16-08 90.0° Milling Cutter 4.000 Cutter Diameter Face Mill 1.250

ZCC EMP02-4.00″-B1.25″-AP16-08 90.0° Milling Cutter 4.000 Cutter Diameter Face Mill 1.250

ANSI: EMP02-4.00″-B1.25″-AP16-08

ISO: EMP02-4.00″-B1.25″-AP16-08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350000934
Delivery date: 3-5 days
$217.50
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Made In USA No
Insert Type Positive
Shipping State Michigan
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.6300
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 2.0000 50.80MM
Cutter Dia 4.0000 101.60MM
Flutes/Inserts 8
Insert Size Ic 16
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
