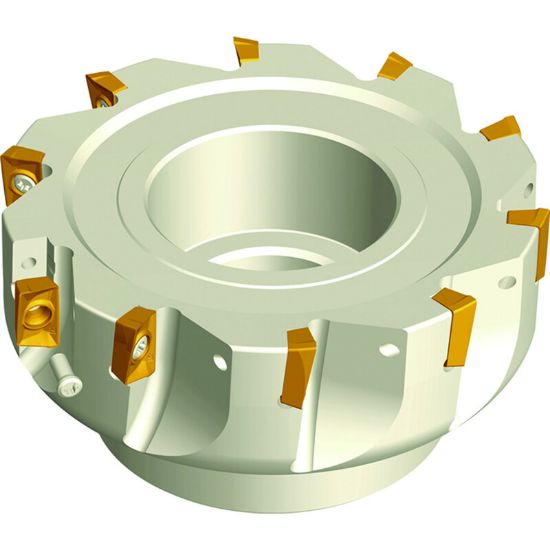

Picture of ZCC EMP02-2.50″-A0.75″-AP16-06 90.0° Milling Cutter 2.500 Cutter Diameter Face Mill 0.750

ZCC EMP02-2.50″-A0.75″-AP16-06 90.0° Milling Cutter 2.500 Cutter Diameter Face Mill 0.750

ANSI: EMP02-2.50″-A0.75″-AP16-06

ISO: EMP02-2.50″-A0.75″-AP16-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350000932
Delivery date: 3-5 days
$164.62
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Shipping State Michigan
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Insert Size Ic 16
Flutes/Inserts 6
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5000 38.10MM
Tool Material Steel
Depth Of Cut Max 0.6300
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
