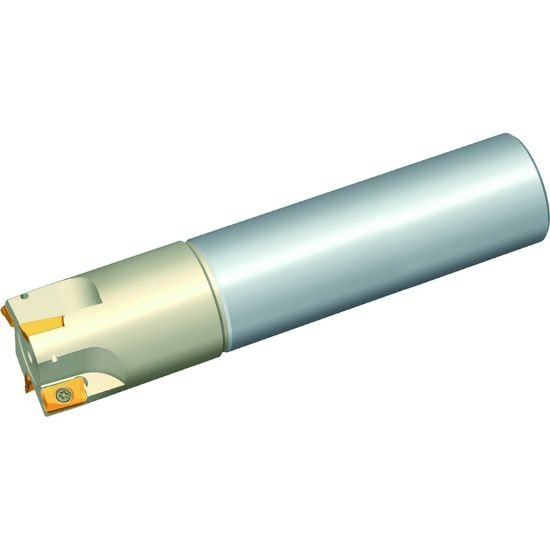

Picture of ZCC EMP01-2.00″-G1.25″-AP16-05 90.0° Milling Cutter 2.000 Cutter Diameter End Mill 1.250

ZCC EMP01-2.00″-G1.25″-AP16-05 90.0° Milling Cutter 2.000 Cutter Diameter End Mill 1.250

Part Number: ZCC4350000923 ISO: EMP01-2.00″-G1.25″-AP16-05 ANSI:EMP01-2.00″-G1.25″-AP16-05
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$197.63
SKU: 1019789

Description

ZCC 4350000923 Parallelogram 90.0°, End Mill End Mill Cylindrical 1.2500 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type End Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 5.5000 139.70MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 5
Tool Dia 2.0000 50.80MM
Insert Size Ic 16
Neck Length 1.7500 44.45MM
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Depth Of Cut Max 0.6300
Materials & Finish
Tool Material Steel
