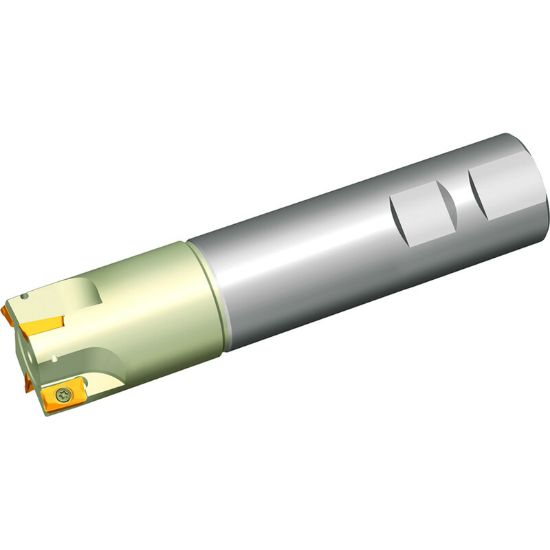

Picture of ZCC EMP01-1.50″-XP1.25″-AP16-04 90.0° Milling Cutter 1.500 Cutter Diameter End Mill 1.250

ZCC EMP01-1.50″-XP1.25″-AP16-04 90.0° Milling Cutter 1.500 Cutter Diameter End Mill 1.250

ANSI: EMP01-1.50″-XP1.25″-AP16-04

ISO: EMP01-1.50″-XP1.25″-AP16-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350000922
Delivery date: 3-5 days
$120.71
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Slot Milling, Pocket Milling, Face Milling, Ramp Milling, Side Milling
Insert Application Semi Finishing, Roughing
Made In USA No
Insert/Tool Tool
Shipping State Michigan
Package Size 1
Dimensional Specifications
Insert Size Ic 16
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Flutes/Inserts 4
Neck Length 1.7500 44.45MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.6300
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 5.0000 127.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
