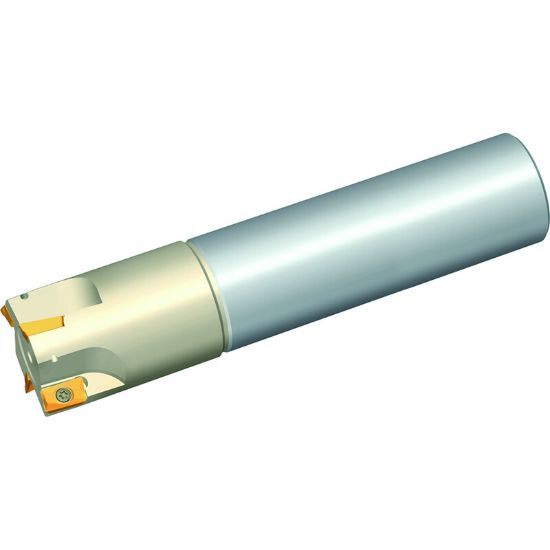

Picture of ZCC EMP01-1.50"-G1.25"-AP16-04(L=10'') 90.0° Milling Cutter 1.500 Cutter Diameter End Mill 1.250

ZCC EMP01-1.50"-G1.25"-AP16-04(L=10'') 90.0° Milling Cutter 1.500 Cutter Diameter End Mill 1.250

ANSI: EMP01-1.50"-G1.25"-AP16-04(L=10'')

ISO: EMP01-1.50"-G1.25"-AP16-04(L=10'')

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350000983
Delivery date: 3-5 days
$180.58
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Type Positive
Shipping State Michigan
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 16
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Overall Len 10.0000 254.00MM
Neck Length 1.7500 44.45MM
Tool Material Steel
Depth Of Cut Max 0.6300
Flutes/Inserts 4
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
