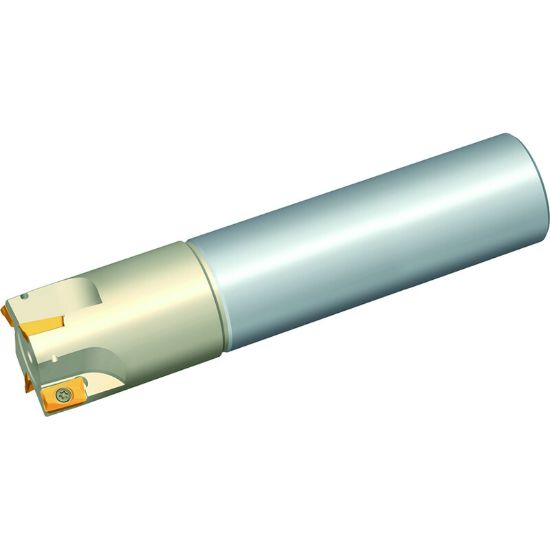

Picture of ZCC EMP01-1.25"-G1.25"-AP16-03(L=7'') 90.0° Milling Cutter 1.250 Cutter Diameter End Mill 1.250

ZCC EMP01-1.25"-G1.25"-AP16-03(L=7'') 90.0° Milling Cutter 1.250 Cutter Diameter End Mill 1.250

ANSI: EMP01-1.25"-G1.25"-AP16-03(L=7'')

ISO: EMP01-1.25"-G1.25"-AP16-03(L=7'')

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350001354
Delivery date: 3-5 days
$102.76
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Neck Length 4.0000 101.60MM
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Insert Size Ic 16
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.6300
Overall Len 7.0000 177.80MM
Tool Material Steel
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
