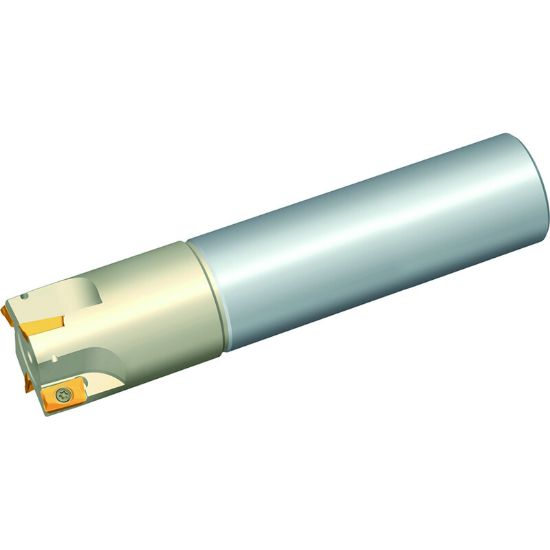

Picture of ZCC EMP01-1.25"-G1.25"-AP11-04(L=10'') 90.0° Milling Cutter 1.250 Cutter Diameter End Mill 1.250

ZCC EMP01-1.25"-G1.25"-AP11-04(L=10'') 90.0° Milling Cutter 1.250 Cutter Diameter End Mill 1.250

ANSI: EMP01-1.25"-G1.25"-AP11-04(L=10'')

ISO: EMP01-1.25"-G1.25"-AP11-04(L=10'')

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350000984
Delivery date: 3-5 days
$161.62
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Type Positive
Shipping State Michigan
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Overall Len 10.0000 254.00MM
Insert Size Ic 11
Depth Of Cut Max 0.4330
Neck Length 1.5000 38.10MM
Flutes/Inserts 4
Cutter Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
