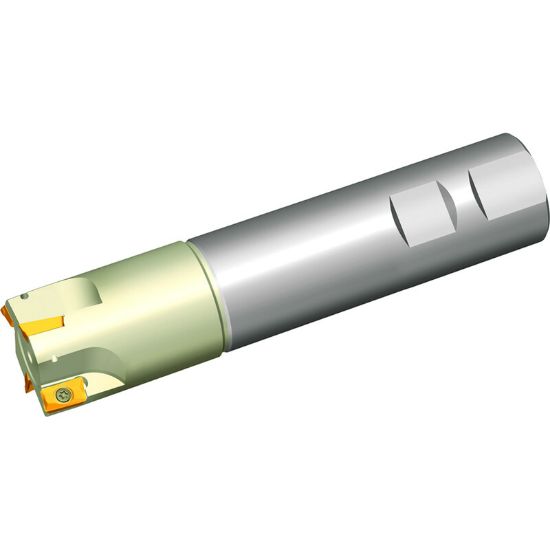

Picture of ZCC EMP01-1.00″-XP1.00″-AP11-03 90.0° Milling Cutter 1.000 Cutter Diameter End Mill 1.000

ZCC EMP01-1.00″-XP1.00″-AP11-03 90.0° Milling Cutter 1.000 Cutter Diameter End Mill 1.000

ANSI: EMP01-1.00″-XP1.00″-AP11-03

ISO: EMP01-1.00″-XP1.00″-AP11-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350000301
Delivery date: 3-5 days
$81.80
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Ramp Milling, Slot Milling, Face Milling, Side Milling, Pocket Milling
Insert/Tool Tool
Insert Type Positive
Shipping State Michigan
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Insert Size Ic 11
Depth Of Cut Max 0.4330
Neck Length 2.2500 57.15MM
Overall Len 4.5000 114.30MM
Flutes/Inserts 3
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
