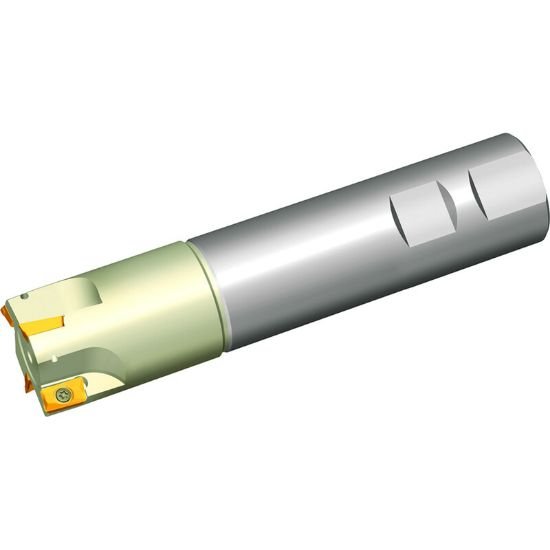

Picture of ZCC EMP01-1.50″-XP1.25″-AP16-04 90.0° Milling Cutter 1.500 Cutter Diameter End Mill 1.250

ZCC EMP01-1.50″-XP1.25″-AP16-04 90.0° Milling Cutter 1.500 Cutter Diameter End Mill 1.250

Part Number: ZCC4350000922 ISO: EMP01-1.50″-XP1.25″-AP16-04 ANSI:EMP01-1.50″-XP1.25″-AP16-04
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$170.80
SKU: 1019797

Description

ZCC 4350000922 Parallelogram 90.0°, End Mill End Mill Cylindrical 1.2500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type End Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 16
Neck Length 1.7500 44.45MM
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Depth Of Cut Max 0.6300
Materials & Finish
Tool Material Steel
