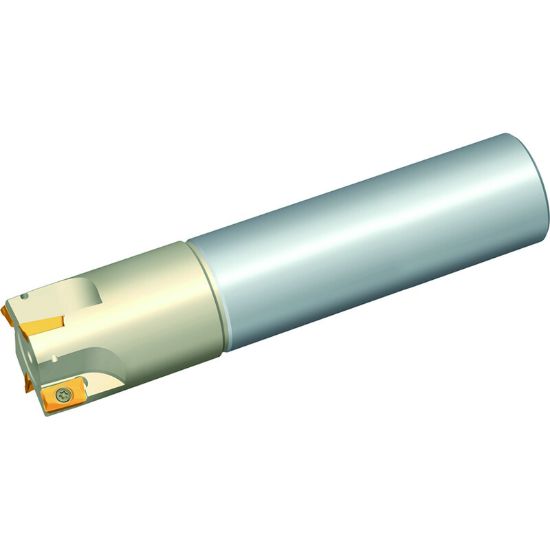

Picture of ZCC EMP01-0.75"-G0.75"-AP11-02(L=6.5'') 90.0° Milling Cutter 0.750 Cutter Diameter End Mill 0.750

ZCC EMP01-0.75"-G0.75"-AP11-02(L=6.5'') 90.0° Milling Cutter 0.750 Cutter Diameter End Mill 0.750

ANSI: EMP01-0.75"-G0.75"-AP11-02(L=6.5'')

ISO: EMP01-0.75"-G0.75"-AP11-02(L=6.5'')

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350001351
Delivery date: 3-5 days
$74.83
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Dimensional Specifications
Insert Size Ic 11
Depth Of Cut Max 0.4330
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Neck Length 3.5000 88.90MM
Flutes/Inserts 2
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Overall Len 6.5000 165.10MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
