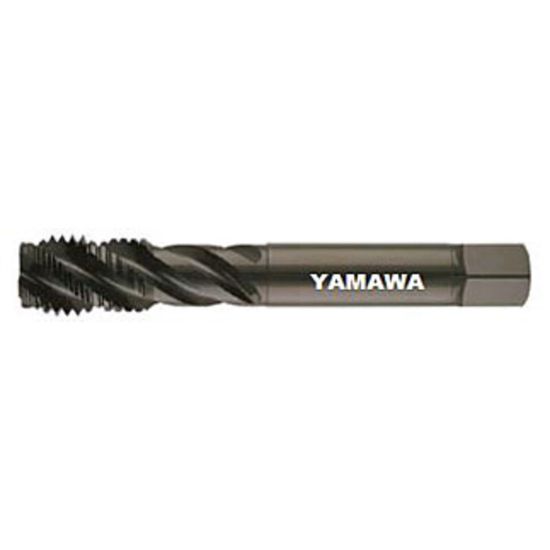

YMW SSU22XYEEXHT 1-3/8-8.00TPI Cut Spiral Flute Mod Bottom 2.5P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMWSSU22XYEEXHT
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating High Performance
Made In USA No
Shipping State California
Coating Steam Oxide
Dimensional Specifications
Thread Pitch 8.00TPI
Tool Material Steel
Drill Range 1.2449 31.62MM - 1.2776 32.45MM
Thread Type NC/UNC
Flutes/Inserts 4
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Flute Direction R - Right
Length Type Standard
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Shank/Pilot Dia 1.1024 28.00MM
Overall Len 6.0620 153.97MM
Machine Side Connection Type Tap Collet
Tap Square 0.8280
Tap Chamfer 2.5P
Thread Size 1-3/8"
Cut Rating <48HRC Steel, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
