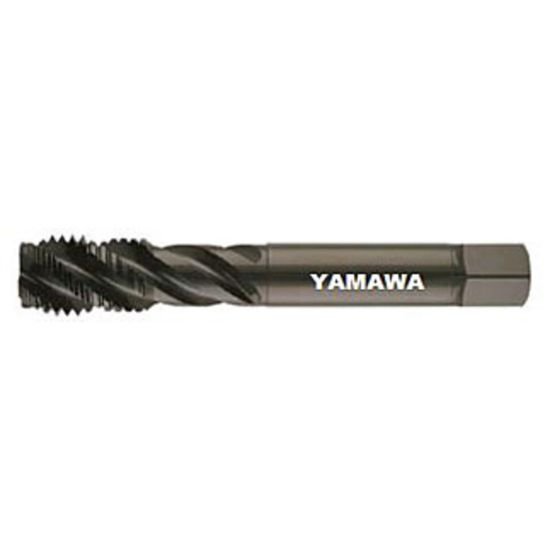

Picture of YMW SSU20XYEEXJ 1-1/4-8.00TPI Cut Spiral Flute Mod Bottom 2.5P HSS Steam Oxide

YMW SSU20XYEEXJ 1-1/4-8.00TPI Cut Spiral Flute Mod Bottom 2.5P HSS Steam Oxide

Part Number: YMWSSU20XYEEXJ
Looking for alternatives…
Find a drill for this tap 1-1/4" × 8.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1173898
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

YMW 1-1/4"x8.00TPI Cut Spiral Flute Mod Bottom 2.5P HSS Steam Oxide H5/GH5 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P
Dimensions & Sizing
Overall Length 5.7500 146.05MM
Shank/Pilot Dia 1.3120 33.32MM
Flutes/Inserts 4
Thread Pitch 8.00TPI
Thread Size 1-1/4"
Tap Drill Range 1.1201 28.45MM - 1.1524 29.27MM
Tap Square 0.7630
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
