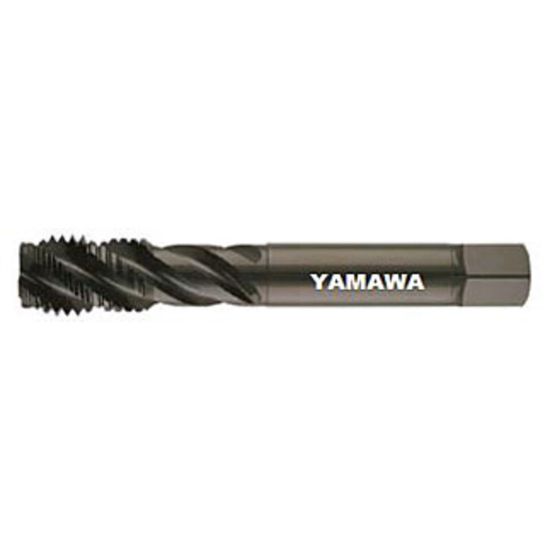

YMW SSU20XYEEXHT 1-1/4-8.00TPI Cut Spiral Flute Mod Bottom 2.5P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMWSSU20XYEEXHT
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Package Size 1
Coating Steam Oxide
Made In USA No
Shipping State California
Dimensional Specifications
Thread Size 1-1/4"
Tap Chamfer 2.5P
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 1.3120 33.32MM
Overall Len 5.7500 146.05MM
Thread Type NC/UNC
Flutes/Inserts 4
Drill Range 1.1201 28.45MM - 1.1524 29.27MM
Thread Pitch 8.00TPI
Cut Rating <48HRC Steel, Stainless Steel
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Tap Square 0.7630
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
