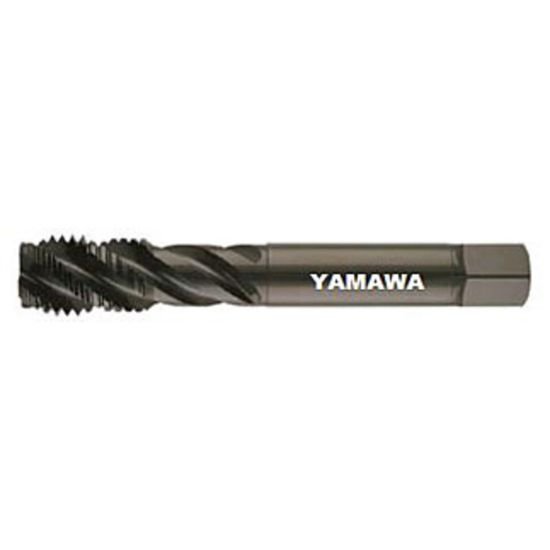

Picture of YMW SSU20XYEEXHT 1-1/4-8.00TPI Cut Spiral Flute Mod Bottom 2.5P HSS Steam Oxide

YMW SSU20XYEEXHT 1-1/4-8.00TPI Cut Spiral Flute Mod Bottom 2.5P HSS Steam Oxide

Part Number: YMWSSU20XYEEXHT
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1173897

Description

YMW 1-1/4"x8.00TPI Cut Spiral Flute Mod Bottom 2.5P HSS Steam Oxide H5/GH5 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P
Dimensions & Sizing
Overall Length 5.7500 146.05MM
Shank/Pilot Dia 1.3120 33.32MM
Flutes/Inserts 4
Thread Pitch 8.00TPI
Thread Size 1-1/4"
Tap Drill Range 1.1201 28.45MM - 1.1524 29.27MM
Tap Square 0.7630
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
