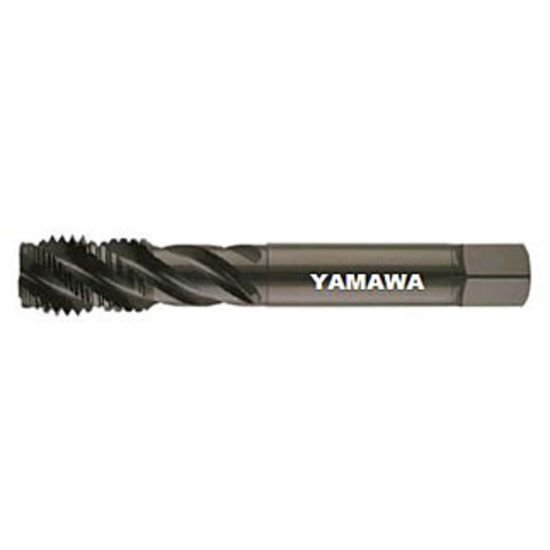

Picture of YMW SSU18XYEEXHT 1-1/8-8.00TPI Cut Spiral Flute Mod Bottom 2.5P HSS Steam Oxide

YMW SSU18XYEEXHT 1-1/8-8.00TPI Cut Spiral Flute Mod Bottom 2.5P HSS Steam Oxide

Part Number: YMWSSU18XYEEXHT

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173881
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
YMW 1-1/8"x8.00TPI Cut Spiral Flute Mod Bottom 2.5P HSS Steam Oxide H5/GH5 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel
Coating Steam Oxide
Overall Length 5.7500 146.05MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.8960 22.76MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 8.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1-1/8"
Thread Limit H5/GH5
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 1.0445 26.53MM - 1.0598 26.92MM
Tap Square 0.7090
Tap Chamfer 2.5P
