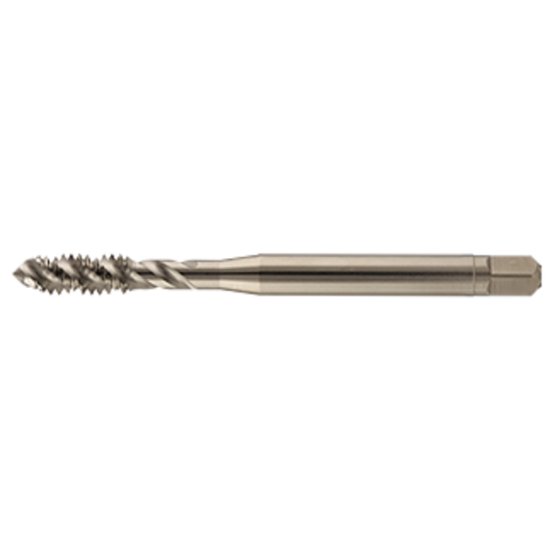

YMW SSU18S5NEB 1-1/8-12.00TPI Cut Spiral Point Plug 2.5P HSS TiCN

Part Number: YMWSSU18S5NEBTiCN
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1173879

Description

YMW 1-1/8"x12.00TPI Cut Spiral Point Plug 2.5P HSS TiCN H5/GH5 NF/UNF/UNEF Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 2.5P
Dimensions & Sizing
Overall Length 5.7500 146.05MM
Shank/Pilot Dia 0.8960 22.76MM
Flutes/Inserts 4
Thread Pitch 12.00TPI
Thread Size 1-1/8"
Tap Drill Range 0.9764 24.80MM - 1.0134 25.74MM
Tap Square 0.6690
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
