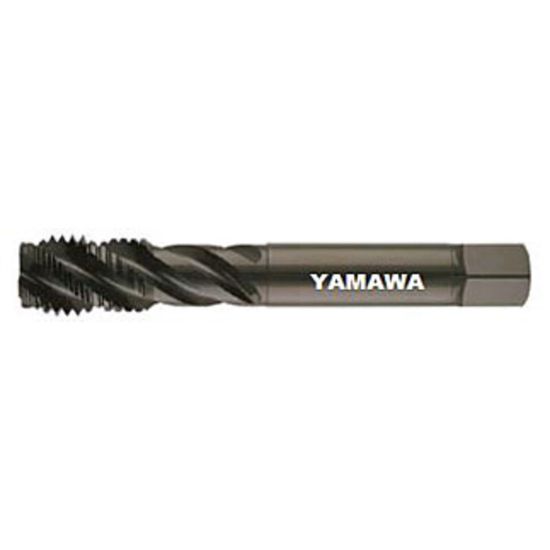

YMW SSU16XYEEXJ 1-8.00TPI Cut Spiral Flute Mod Bottom 2.5P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMWSSU16XYEEXJ
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Steam Oxide
Performance Rating High Performance
Made In USA No
Shipping State California
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Drill Range 0.8701 22.10MM - 0.9024 22.92MM
Tool Material Steel
Thread Pitch 8.00TPI
Cut Rating <48HRC Steel, Stainless Steel
Tap Square 0.5970
Thread Size 1"
Thread Type NC/UNC
Flute Direction R - Right
Overall Len 5.1250 130.18MM
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Chamfer 2.5P
Tap Style Cut Spiral Flute
Thread Limit H5/GH5
Shank/Pilot Dia 0.8000 20.32MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
