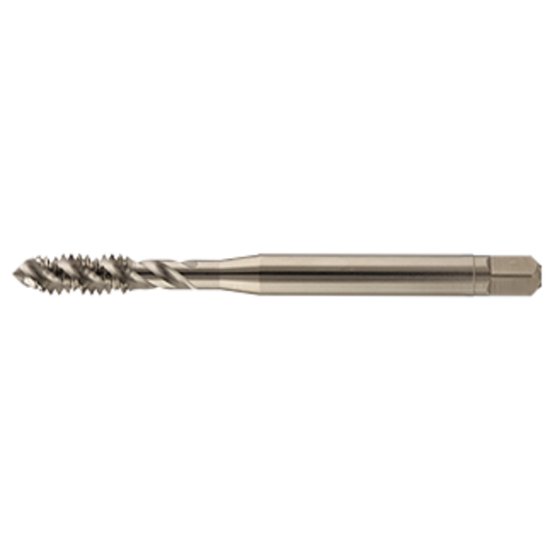

Picture of YMW SSU16S3NEX 1-12.00TPI Cut Spiral Point Plug 2.5P HSS Steam Oxide

YMW SSU16S3NEX 1-12.00TPI Cut Spiral Point Plug 2.5P HSS Steam Oxide

Part Number: YMWSSU16S3NEX
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$225.15
SKU: 1173861

Description

YMW 1"x12.00TPI Cut Spiral Point Plug 2.5P HSS Steam Oxide H3/GH3 NF/UNF/UNEF Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 2.5P
Dimensions & Sizing
Overall Length 5.1250 130.18MM
Shank/Pilot Dia 0.8000 20.32MM
Flutes/Inserts 4
Thread Pitch 12.00TPI
Thread Size 1"
Tap Drill Range 0.9134 23.20MM - 0.9350 23.75MM
Tap Square 0.5710
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
