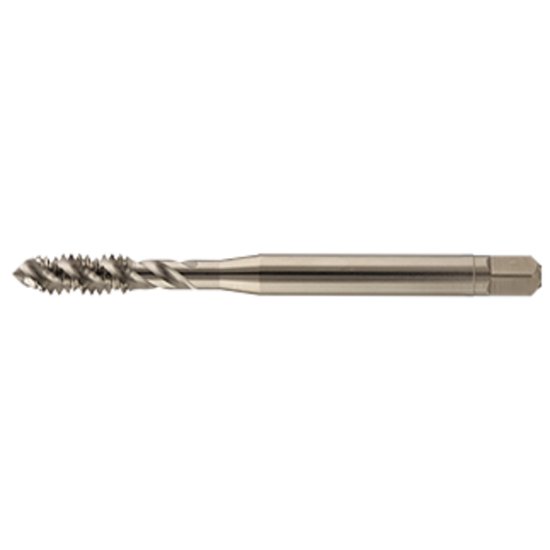

Picture of YMW SSU10O3NEX 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V Steam Oxide

YMW SSU10O3NEX 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V Steam Oxide

Part Number: YMWSSU10O3NEX
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$61.71
SKU: 1174274

Description

YMW 5/8"x18.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V Steam Oxide H3/GH3 NF/UNF/UNEF Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 3
Thread Pitch 18.00TPI
Thread Size 5/8"
Tap Drill Range 0.5669 14.40MM - 0.5815 14.77MM
Tap Square 0.3600
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Coating Steam Oxide
Standards & Identification
Dimension Standard DINSI
