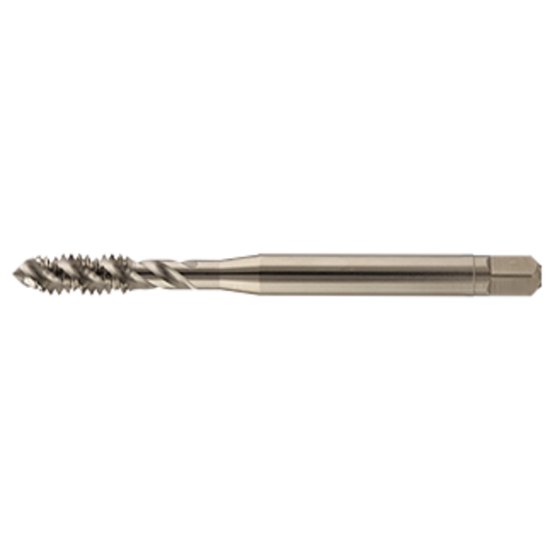

Picture of YMW SSU09O3NEB 9/16-18.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V Uncoated

YMW SSU09O3NEB 9/16-18.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V Uncoated

Part Number: YMWSSU09O3NEB
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$56.04
SKU: 1174253

Description

YMW 9/16"x18.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 4.3310 110.01MM
Shank/Pilot Dia 0.4290 10.90MM
Flutes/Inserts 3
Thread Pitch 18.00TPI
Thread Size 9/16"
Tap Drill Range 0.5047 12.82MM - 0.5189 13.18MM
Tap Square 0.3220
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Standards & Identification
Dimension Standard DINSI
