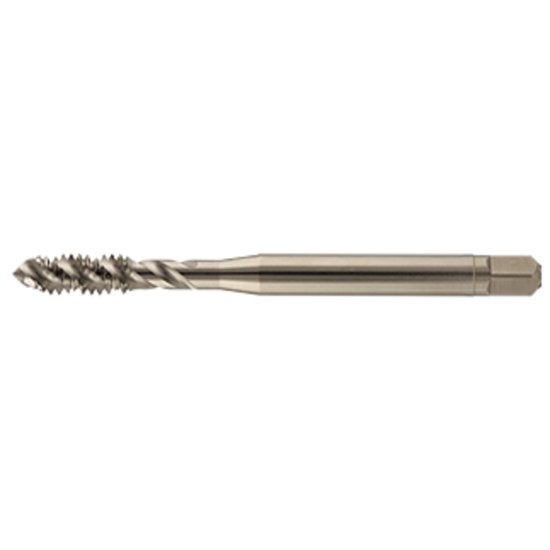

Picture of YMW SSU04N3NEB 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V Uncoated

YMW SSU04N3NEB 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V Uncoated

Part Number: YMWSSU04N3NEB
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$16.25
SKU: 1174170

Description

YMW 1/4"x20.00TPI Cut Spiral Flute Mod Bottom 2.5P HSSE-V Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 3.1490 79.98MM
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Thread Pitch 20.00TPI
Thread Size 1/4"
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1910
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Standards & Identification
Dimension Standard DINSI
