  • YMW 389646TIN 3/4-14.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiN

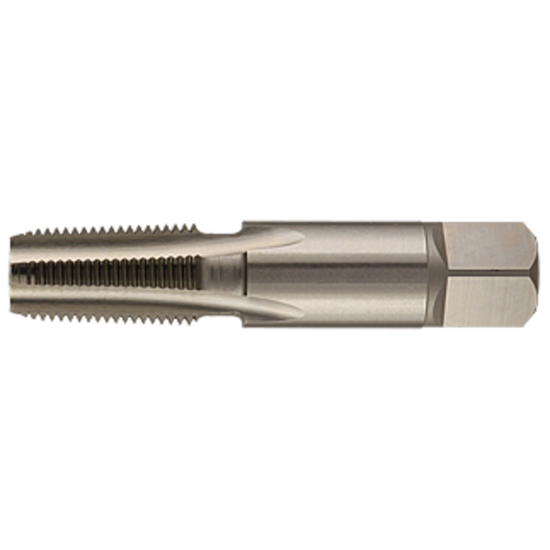

Picture of YMW 389646TIN 3/4-14.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiN

YMW 389646TIN 3/4-14.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389646TIN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Performance Rating High Performance
Made In USA No
Shipping State California
Coating TiN
Package Size 1
Dimensional Specifications
Thread Size 3/4"
Dimension Standard ANSI/ANSI
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Tap Type Pipe
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Tap Collet
Drill Range 0.9059 23.01MM
Thread Pitch 14.00TPI
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Overall Len 3.2520 82.60MM
Thread Limit PIPE
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Tap Square 0.6790
Tap Style Pipe Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt M42
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Mold Yes
