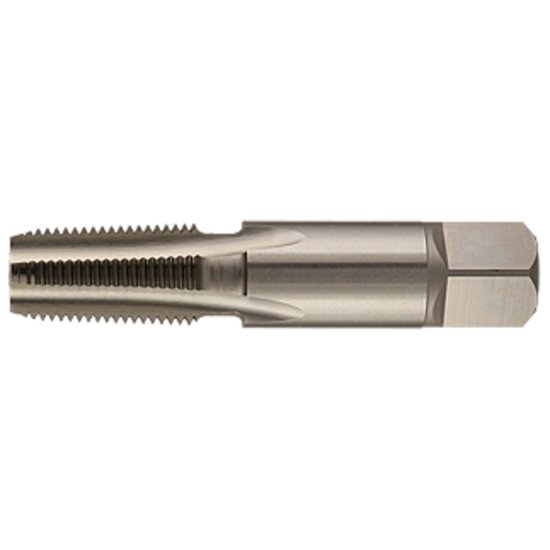

Picture of YMW 389646TIn 3/4-14.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiN

YMW 389646TIn 3/4-14.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiN

Part Number: YMW389646TIN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173857
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
YMW 3/4"x14.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiN PIPE NPT/NPTF/ANPT Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat Cobalt M42
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Coating TIN
Overall Length 3.2520 82.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 14.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Thread Size 3/4"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 0.9059 23.01MM
Tap Square 0.6790
