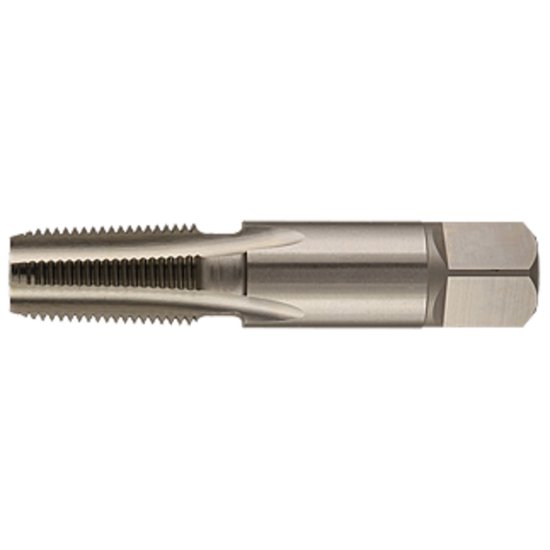

YMW 389646 3/4-14.00TPI Pipe Spiral Flute Pipe Cobalt M42 Uncoated

Part Number: YMW389646
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$226.41
SKU: 1173855

Description

YMW 3/4"x14.00TPI Pipe Spiral Flute Pipe Cobalt M42 Uncoated PIPE NPT/NPTF/ANPT Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimensions & Sizing
Overall Length 3.2520 82.60MM
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Flutes/Inserts 4
Thread Pitch 14.00TPI
Thread Size 3/4"
Tap Drill Range 0.9059 23.01MM
Tap Square 0.6790
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat Cobalt M42
Standards & Identification
Dimension Standard ANSI/ANSI
