  • YMW 389643 1/4-18.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiN

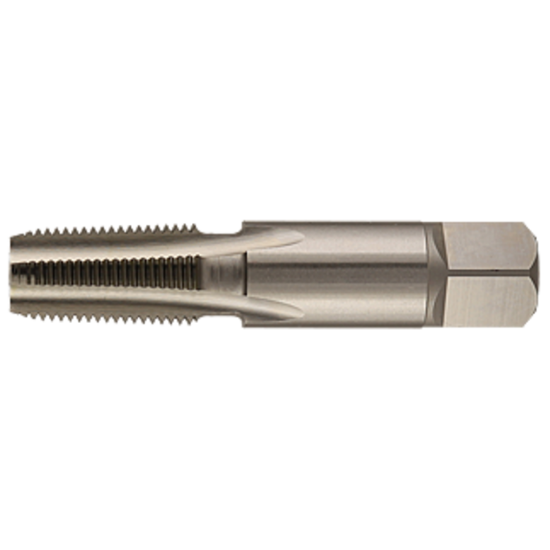

Picture of YMW 389643 1/4-18.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiN

YMW 389643 1/4-18.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389643TiN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Spiral Flute Pipe, Tapping
Package Size 1
Coating TiN
Performance Rating High Performance
Made In USA No
Shipping State California
Dimensional Specifications
Thread Pitch 18.00TPI
Tap Style Pipe Spiral Flute
Tap Type Pipe
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Thread Limit PIPE
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Machine Side Connection Type Tap Collet
Thread Size 1/4"
Shank/Pilot Dia 0.5620 14.27MM
Drill Range 0.4378 11.12MM
Tap Square 0.4210
Overall Len 2.4370 61.90MM
Dimension Standard ANSI/ANSI
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt M42
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
Mold Yes
