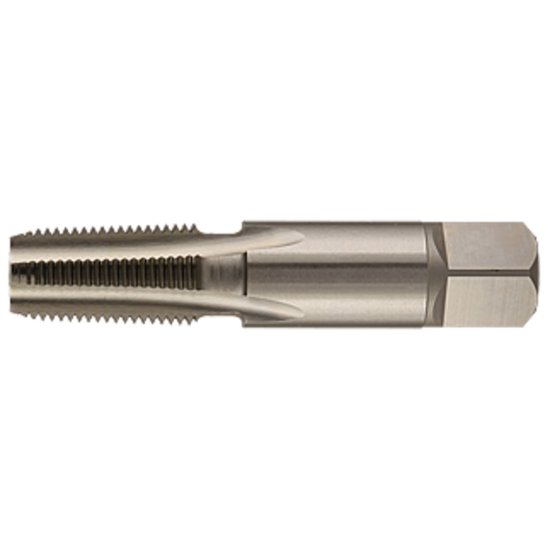

Picture of YMW 389641TIn 1/8-27.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiN

YMW 389641TIn 1/8-27.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiN

Part Number: YMW389641TIN
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1173845

Description

YMW 1/8"x27.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiN PIPE NPT/NPTF/ANPT Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimensions & Sizing
Overall Length 2.1250 53.98MM
Shank/Pilot Dia 0.4370 11.10MM
Flutes/Inserts 4
Thread Pitch 27.00TPI
Thread Size 1/8"
Tap Drill Range 0.3319 8.43MM
Tap Square 0.2340
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat Cobalt M42
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
