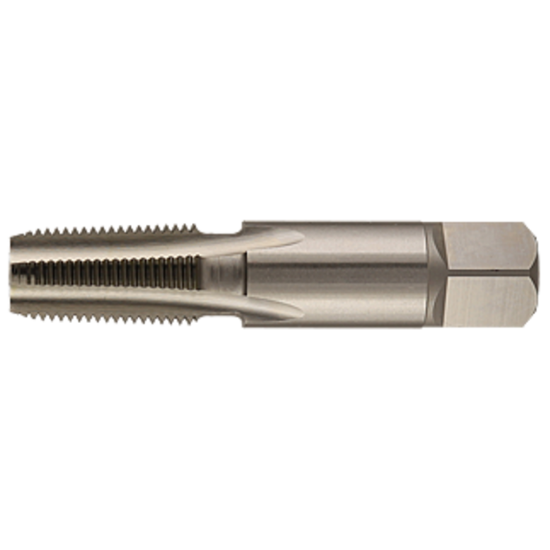

YMW 389641TICN 1/8-27.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389641TICN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State California
Application Pipe Tapping, Tapping, Spiral Flute Pipe
Coating TiCN
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Machine Side Connection Type Tap Collet
Overall Len 2.1250 53.98MM
Tap Square 0.2340
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Thread Size 1/8"
Thread Pitch 27.00TPI
Tap Type Pipe
Dimension Standard ANSI/ANSI
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Shank/Pilot Dia 0.4370 11.10MM
Drill Range 0.3319 8.43MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt M42
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
Mold Yes
