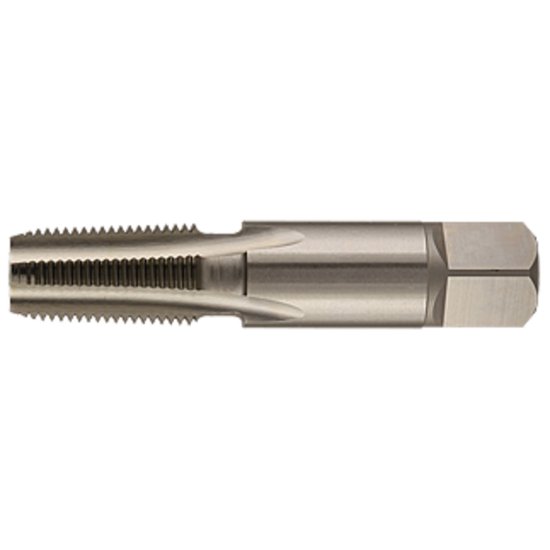

Picture of YMW 389641TICN 1/8-27.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiCN

YMW 389641TICN 1/8-27.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiCN

Part Number: YMW389641TICN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: 1173844
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
YMW 1/8"x27.00TPI Pipe Spiral Flute Pipe Cobalt M42 TiCN PIPE NPT/NPTF/ANPT Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat Cobalt M42
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Coating TICN
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4370 11.10MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 27.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Thread Size 1/8"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3319 8.43MM
Tap Square 0.2340
