  • YMW 389627 3/4-10.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

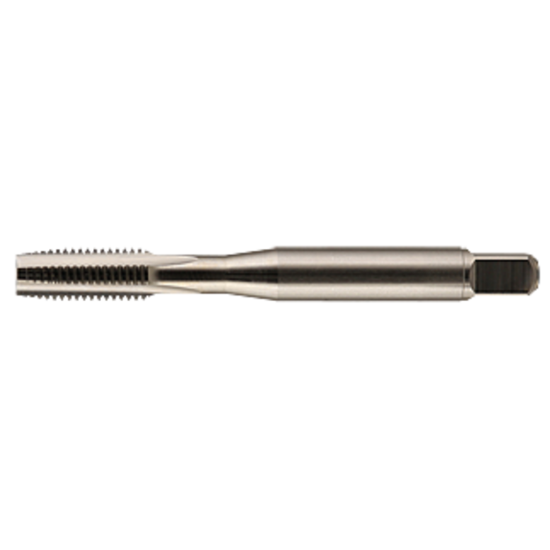

Picture of YMW 389627 3/4-10.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

YMW 389627 3/4-10.00TPI Cut Spiral Point Plug 4.0P-6.0P Cobalt M42 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YMW
SKU: YMW389627
Delivery date: 3-5 days
$110.40

Cutting Edge Definition

M42® is a premium cobalt high-speed steel with high hardness and superior hot hardness. The combination of composition and properties allows for machining high-strength and pre-hardened steels, high-hardness alloys, and the difficult-to-machine, nonferrous superalloys.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating High Performance
Made In USA No
Shipping State California
Package Size 1
Dimensional Specifications
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 4
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Tap Style Cut Spiral Point
Tap Type Plug
Thread Size 3/4"
Shank/Pilot Dia 0.5900 14.99MM
Tap Chamfer 4.0P-6.0P
Tool Material Steel
Length Type Standard
Thread Pitch 10.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Overall Len 4.2520 108.00MM
Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt M42
Industry-Specific Applications
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
